Product Description
Whether threading shots through dense timber or dialing in at extended range, Crossfire® HD delivers sharper detail and improved light transmission, giving you the confidence to own any hunt.

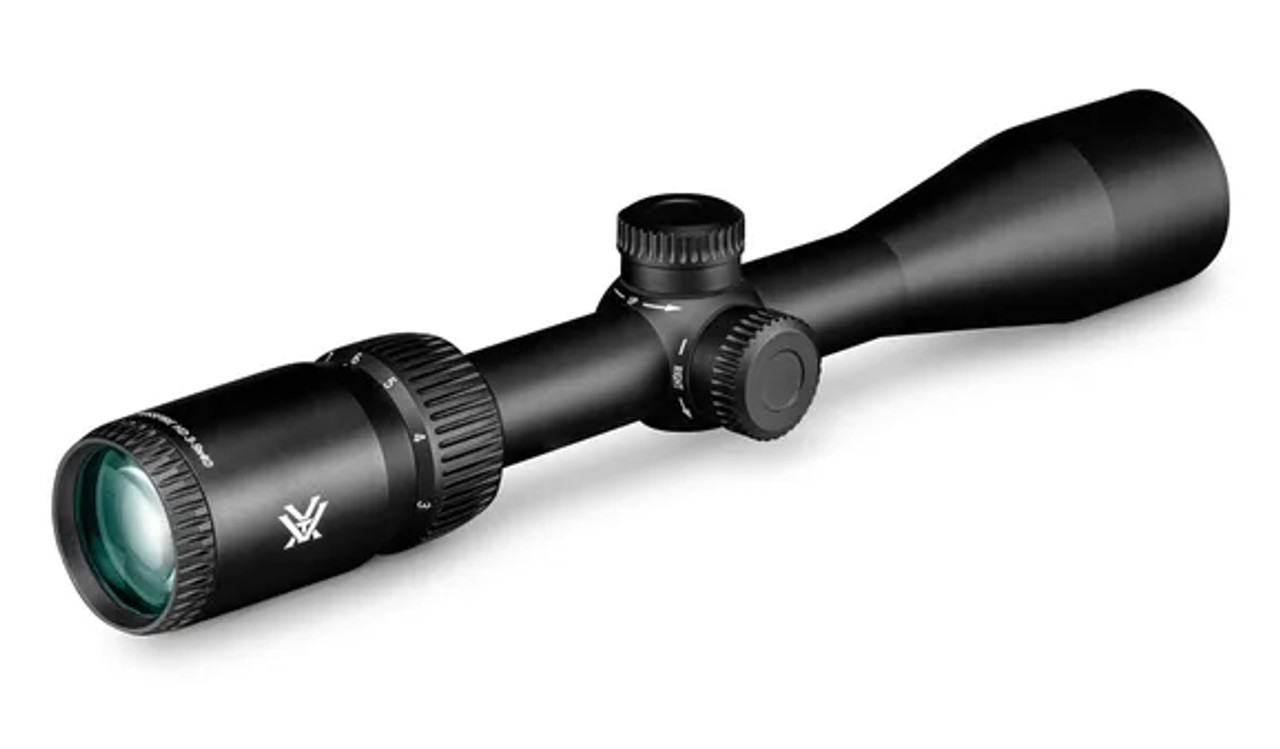

Crossfire HD 3-9x40 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.5 | 1.7 | 1.9 | 4.9 | 4.0 | 3.7 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.9 | 1.7 |
| Magnification | 3-9x |
|---|---|
| Objective Lens Diameter | 40 mm |
| Focal Plane | Second Focal Plane |
| Reticle | Dead-Hold® BDC (MOA) |
| Eye Relief | 3.8" |
| Field of View | 37.2' - 12.4' @ 100 yds. |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 72 MOA |
| Max Windage Adjustment | 72 MOA |
| Parallax Setting | 100 yds. |
| Length | 12.5" |
| Weight | 16.2 oz. |
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
|---|---|
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| Fast-Focus Eyepiece | Allows quick and easy reticle focusing. |
| Aircraft Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Low-Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Fogproof | Designed to withstand a wide range of temperatures. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
Dead-Hold® BDC (MOA)
Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting and shooting at varying ranges, where estimating holdover is a concern.
Subtension detail for Crossfire HD 3-9x40 riflescope with Dead-Hold® BDC MOA reticle.

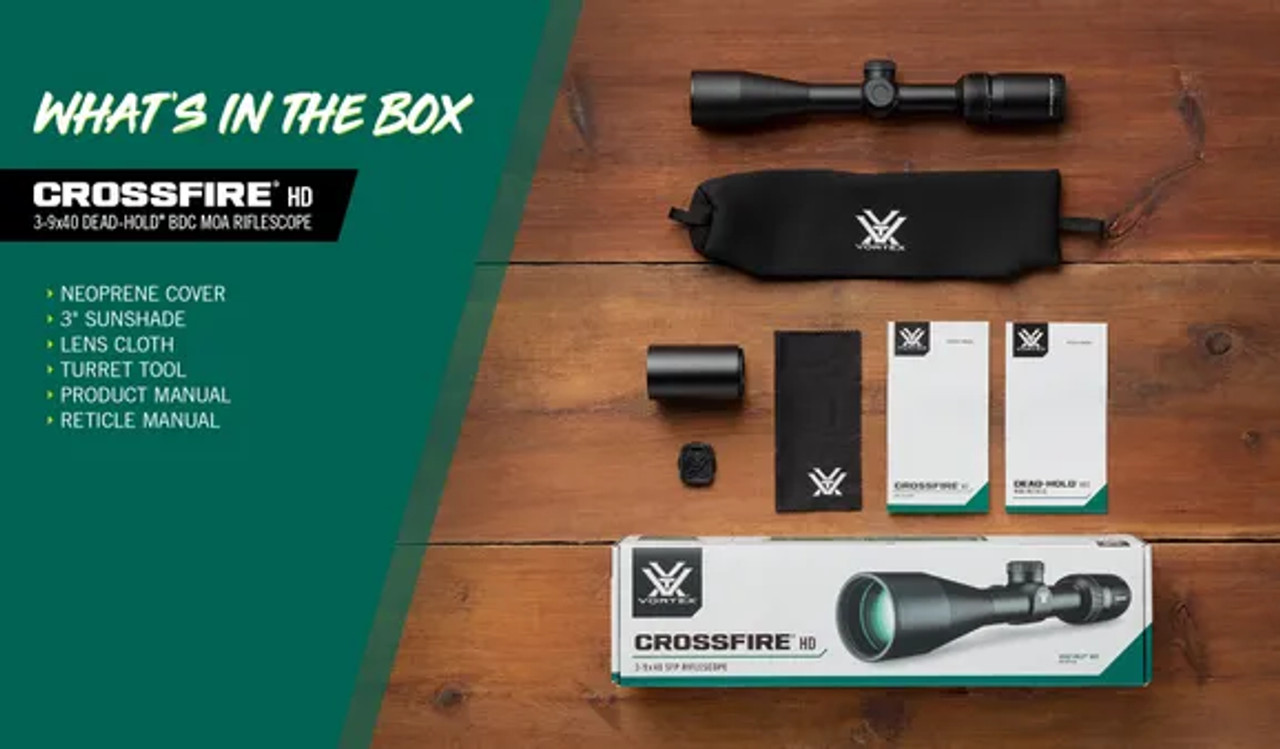

Included in the Box
- Neoprene Cover
- 3" Sunshade
- Turret Tool
- Lens Cloth
- CR2032 Battery (Illuminated model only)
